Stop stray photons before they reach the detector by blocking unwanted paths and absorbing reflections with an ultra-black, low-reflectance coating inside the instrument.

Scattered light is one of the primary limiting factors in spectrometer performance. It degrades the dynamic range, reduces contrast, and introduces spectral impurity that can lead to false readings. To prevent this, a two-pronged approach is needed. The first is optimizing the optical geometry to trap unwanted photons and, critically, applying high-performance absorptive treatments to all non-optical surfaces within the housing. While optical design controls the path of light, the surface finish controls what happens to the photons that deviate from that path.



The Critical Role of Surface Treatment

In any high-precision optical bench, the mechanical components, such as, baffles, mounts, and housing walls, are potential sources of noise. If a photon strikes a mechanical surface and reflects rather than being absorbed, it becomes stray light. To mitigate this, standard black anodization or generic paints are often insufficient, particularly in the infrared or UV ranges. The most effective solution is the application of an ultra black coating directly onto these mechanical parts. For example, applying a direct-deposited coating to the internal baffles of a spectrometer can absorb up to 99.9% of incident stray light, ensuring that only the intended signal reaches the detector. This dramatically improves the linearity and accuracy of the spectral data.

Managing Thermal and Optical Noise

Preventing scattered light involves more than just absorbing visible photons; in many applications, thermal management is equally vital to reducing background noise. For IR spectrometers, the housing itself can become a source of thermal radiation if not properly managed. An effective optical coating in these setups must possess specific thermal properties. Coating with high thermal emissivity allows efficient radiative heat dissipation and reduces the thermal background noise.

Thin-Film Solutions for Precision Optics

A common challenge in spectrometry design is applying light-absorbing materials without altering the precise geometry of the optical bench. Thick paints or adhesive foils can change the dimensions of critical apertures or outgas, contaminating sensitive optics. A low reflectance coating solves this by creating a uniform, micron-thin layer that adheres strictly to the part’s geometry. For example, slit edges and complex baffles can be coated without rounding off sharp edges, preserving the mechanical precision required for high-resolution spectroscopy while completely eliminating glancing-angle reflections.

Consider these ready-to-use options from Acktar to implement solutions in your spectrograph:

  • Metal Velvet™ Foil: An adhesive-backed, ultra-diffusive liner perfect for covering large internal housing surfaces to kill stray light instantly.
  • Stray Light Control Kit: A versatile sample set allowing you to test various coatings, including Spectral Black™ and MaxiBlack™, to find the exact match for your thermal and optical requirements.
  • Magic Black™ Coated Components: Ideal for precision parts like slits and apertures, offering high absorption with negligible thickness (3-5µm). Contact us for a dedicated coating specifically for your product.

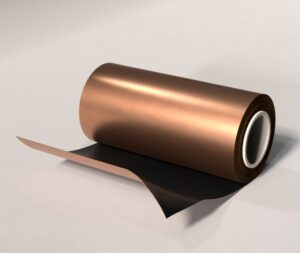

Acktar’s Foil

Preventing scattered light in a spectrometry setup is not just about blocking light leaks, but about managing the internal photon environment. By combining smart optical design with a specialized low reflectance coating, ghosting and background noise can be eliminated.
